Monte Carlo analysis of slope

    The discrete element Monte Carlo numerical analysis of the slope controls the properties of each element. In Matdem, 100 side-by-side slopes are calculated at the same time, with more than 800,000 units, and 40,000 slopes are calculated in 6 days. Through optimization, a slope stability calculation is completed every 2 seconds. All of above will be reported and shared during the China Rock 2019 conference in Beijing.

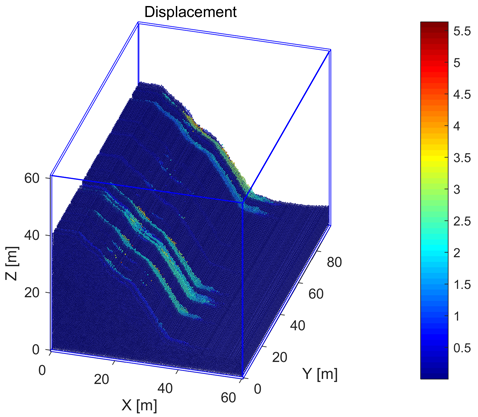

Fig. :the displacement field of 100 side-by-side slopes(1.8 seconds)

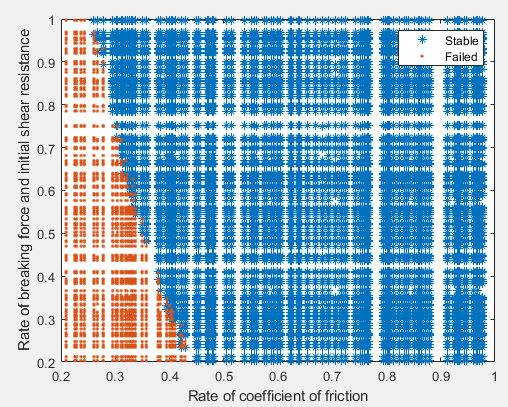

Fig. : Distribution of failure and stability, The horizontal and vertical coordinates represent the  reduction of Shear Strength Index.
